CPI CMP™ is the world’s premier supplier of high-quality radiographic and fluoroscopic X-ray generators, providing peak output powers from 32kW to 100kW at up to 400kHz output frequency.   Simplified 2 or 3 point technique usage to allow for utility by differently trained technologists.

The CMP200DR™ series offers cost-effective radiographic service from 40kW to 80kW output power.

The CMP200™ series offers cost-effective radiographic service from 32kW to 50kW output power.

CPI's CMP 200™ & 200DR™ generators have distinguished themselves as the global leader in performance and dependability with lowest cost of ownership over the product life.

Indico100™ Series addresses both RF and radiographic applications over the entire power output ranging from 32kw to 100kW special procedures & large animal applications.

CMP150 Energy Assist - NEW!


More than 1,000 pre programmed, easily selectable techniques.

High Frequency Generators operating at greater than 400kHz

Compact modern designs


  SLAVE GENERATORS FOR DR INTEGRATIONS ARE AVAILABLE

Back to Products Page All_Products.html

Powered By

Markets Served       Hospitals  I  Clinics  I  Orthopedic  I  Chiro  I  Vet

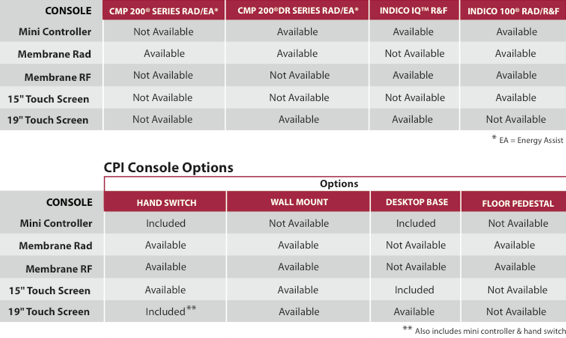

CONSOLES



Standard Membrane Radiographic Console


19” Touchscreen Radiographic Console


Mini Console -- for use with integrated DR Workstations

RadVision


Radiographic & Fluoroscopic INDICO Console

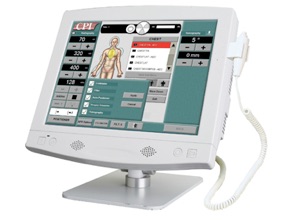

15” Touchscreen Radiographic Console

MAIN FEATURES

  1. Output power levels 32, 40, & 50 kW.

  2. Output capability 125 kV / 150 kV, dependent on model.

  3. Smaller, lighter, modular design.

  4. Constant dose output due to kV and mA regulation during exposures.

  5. User-friendly controls.

  6. Large LCD panel for APR and technique display.

  7. User-friendly system configuration.

  8. Programmed for APR operation, with manual override of technique factors.

  9. Extensive self-diagnostics with operator prompt messages.

  10. Time and mA / mAs selections are to IEC standards.



OPTIONS

  1. Remote exposure hand switch.

  2. AEC (Automatic Exposure Control).

  3. Tomography.

  4. Dose-Area Product (DAP).

CMP200


MAIN FEATURES

  1. Output power levels 32, 40, 50, 65, & 80 kW.

  2. Output capability 125 kV / 150 kV, dependent on model.

  3. Smaller, lighter, modular design.

  4. Constant dose output due to kV and mA regulation during exposures.

  5. User-friendly controls.

  6. Large LCD panel for APR and technique display.

  7. User-friendly system configuration.

  8. Programmed for APR operation, with manual override of technique factors.

  9. Extensive self-diagnostics with operator prompt messages.

  10. Time and mA / mAs selections are to IEC standards.



OPTIONS

  1. Remote exposure hand switch.

  2. AEC (Automatic Exposure Control).

  3. Tomography.

  4. Dual Speed Starter (400 / 480 VAC models only).

  5. Various digital interfaces, dependent on model.

  6. Dose-Area Product (DAP).

CMP200DR


Small   Lightweight   Compact   Cost Effective

Small   Lightweight   Compact   Cost Effective

RADIOGRAPHIC MODELS

CPI R & F MODELS

GENERATOR MAIN FEATURES

  1. 100 kHz technology. Constant potential equivalent.

  2. Output power of up to100 kW at 1000 mA (at 100 kV). Full 150 kV capability (32, 40, 50, 65 & 80kW models also available).

  3. SP model will Interface to the InfiMed SwingLabTM digital imaging system as well as stepping tables.

  4. kV/mAs reduction for peripheral studies.

  5. Cine - 15 / 30 FPS and DSA with InfiMed Gold One with Swing LabTM.

  6. SP Model features Auto exposure lock with AEC for DSA and cine applications.

  7. Pulse fluoroscopy.

  8. High level fluoro, up to 20 mA.

  9. APR - allows all generator parameters to be pre-set.

  10. Selection of kV transfer curves to allow pre-setting of Rad kV from last Fluoro kV.

  11. Maximum kV, mA, mAs may be limited for certain applications and X-ray tube limitations.

  12. Full X-ray tube protection.

  13. Injector, start or release. Delays may be programmed via the InfiMed system and / or the injector.

  14. Generator duty cycle protection.

  15. Dose-Area Product. Displayed at the generator console (optional).

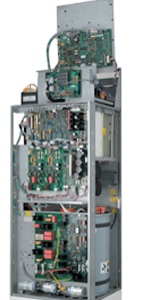

INDICO


Robust   Reliable   World Renown

INDICO IQ


INDICO SP


Small   Lightweight   Compact   Cost Effective

2 Feet

Installed base of 60,000+ generators worldwide

CMP200™  (32kW)

Generator Type: High Frequency Output up to 400 kHz

kV Range: 40 - 125 kV

mA Range: 10 - 400 mA

mAs Range: 0.1 - 500 mAs

Rotor Supply: Toshiba, Q or R - Low Speed

Technical Info

CMP200™  (40kW)

Generator Type: High Frequency Output up to 400 kHz

kV Range: 40 - 125 kV

mA Range: 10 - 500 mA

mAs Range: 0.1 - 500 mAs

Rotor Supply: Toshiba, Q or R - Low Speed

CMP200™  (50kW)

Generator Type: High Frequency Output up to 400 kHz

kV Range: 40 - 150 kV

mA Range: 10 - 630 mA

mAs Range: 0.1 - 630 mAs

Rotor Supply: Toshiba, Q or R - Low Speed

Technical Info

CMP200DR™  (40kW)

Generator Type: High Frequency Output up to 400 kHz

kV Range: 40 - 125 kV

mA Range: 10 - 500 mA

mAs Range: 0.1 - 500 mAs

Rotor Supply: Toshiba, Q or R - Low Speed

CMP200DR™  (65kW)

Generator Type: High Frequency Output up to 400 kHz

kV Range: 40 - 150 kV

mA Range: 10 - 800 mA

mAs Range: 0.1 - 800 mAs

Rotor Supply: Toshiba, Q or R - Low Speed or High Speed

CMP200DR™  (80kW)

Generator Type: High Frequency Output up to 400 kHz

kV Range: 40 - 150 kV

mA Range: 10 - 1,000 mA

mAs Range: 0.1 - 1,000 mAs

Rotor Supply: Toshiba, Q or R - Low Speed or High Speed

CMP200DR™  (50kW)

Generator Type: High Frequency Output up to 400 kHz

kV Range: 40 - 150 kV

mA Range: 10 - 630 mA

mAs Range: 0.1 - 630 mAs

Rotor Supply: Toshiba, Q or R - Low Speed

CMP150 Energy Assist

Technical Info

CMP150™  (32kW)

Generator Type: High Frequency Output up to 400 kHz

kV Range: 40 - 125 kV

mA Range: 10 - 500 mA

mAs Range: 0.1 - 500 mAs

Rotor Supply: Toshiba, Q or R - Low Speed

MAIN FEATURES

  1. Output power level 32 kW Energy Assist

  2. Single Phase 15Amp 100-240 VAC +/- 10%

  3. Smaller, lighter, modular design.

  4. Constant dose output due to kV and mA regulation during exposures.

  5. User-friendly controls.

  6. Medical and Veterinary Models Available

HfE - Diagnostic X-ray generator

Technical Info

HfE™  (40-80kW)

Generator Type: High Frequency IGBT High Voltage + Card Cage Design

kV Range: 40 - 150 kV

mA Range: 10 - 800 mA

Rotor Supply: Toshiba, Q or R - Low Speed or High Speed

MAIN FEATURES

  1. RS232 & Ethernet Interface

  2. Several form factor designs available

  3. Optional AEC capability

  4. User-friendly controls.

  5. Medical and Veterinary Models Available

SPELLMAN HIGH VOLTAGE

Installed base of 10,000+ generators worldwide

Powered By

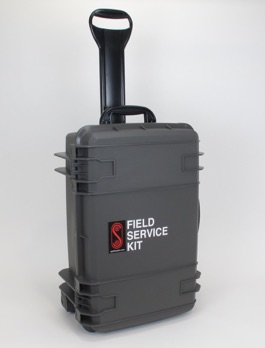

Hero Parts Kit (stocked in Denver, CO)

  1. Filament Driver Board

  2. Digital Interface Board

  3. Room i/O board

  4. IGBT Board

  5. IGBT Module

  6. Low-Volt Fuse Kit


Additional Stocked Parts

    AEC Board

    Digital AEC Board

    Specialty Cables

    HIGH VOLTAGE TANK

Membrane or Touchscreen Consoles available...

Some of the Spellman Hero Parts Kit (stocked in Denver, CO)

    PARTS CAN BE SHIPPED AS LATE AS 5:30 PM M.S.T.

  1. Filament Driver Board

  2. Digital Interface Board

  3. Room i/O board

  4. IGBT Board

  5. IGBT Module

  6. HIGH VOLTAGE TANK

SPARE PARTS AVAILABLE IN USA FOR IMMEDIATE NEEDS
